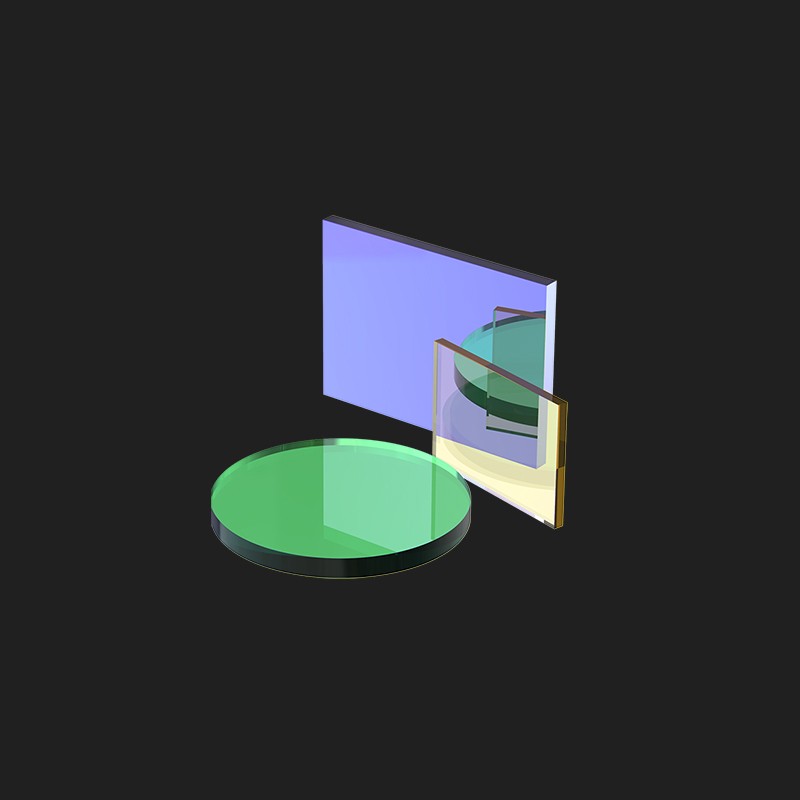

Color Glass Filter

Color Glass Filter is produced by doping special elements during glass melting, enabling it to absorb specific spectral bands and transmit target wavelengths. Featuring stable material properties, its central wavelength stays unchanged at different incident angles, delivering better angle insensitivity than traditional dielectric coated filters.


Material	Optical Glass, Color Glass, etc.
Dimensional tolerances	+/-0.1mm
Surface Flatness	λ/10~1λ
Parallelism	< 30 arc seconds, <2 arc min
Surface Quality	10/5,20/10,40/20
Edge Chip	<0.1mm
Bevel	Protective bevel, or based on clients’ requests
Clear Aperture	>90%
Coating	According to customer's request

AOS Optics can provide colored optical glass, including cut-off glass and selective absorption glass, UV transmission visible absorption glass, infrared transmission visible absorption glass, UV cut-off glass, blue glass, green glass, golden glass, orange glass, red glass, protective glass, heat-insulating glass, skylight glass, color temperature increase glass, color temperature decrease glass, wavelength calibration glass (neodymium glass, holmium glass), neutral dark glass, grating.

Color Glass Filter application areas:

In laser protection, industrial measurement and environmental measurement instruments, color filters are also used in mobile phone cameras, digital cameras, digital video cameras, computer cameras, mesh, security monitors, cameras, video phones, video doorbells, etc., CCD/CMOS digital imaging systems, etc.
