Micro lens processing demands stringent requirements for tooling, equipment, and manufacturing techniques. We achieve sub-0.5 mm micro lens fabrication and are capable of processing bonded micro lenses—components widely applied in life sciences, industrial endoscopes, medical devices, optical instruments, and fiber optic communications.
PRODUCT PROFILE | |
Material | Optical Glasses, N-BK7/H-K9L, Fused Silica, Infrared Material, etc. |
Dimension | 0.3~10.0mm |
Tolerance | +/-0.01mm, or +/-0.1mm |
Flatness | PV:Lambda/10 ,or RMS: Lambda/100 |
Centration | < 30 arc seconds |
Surface Quality | 10-5, 3X0.063 |
Clear Aperture | >90% |
Bevel | Protective bevel |
Coating | According to customer's request |

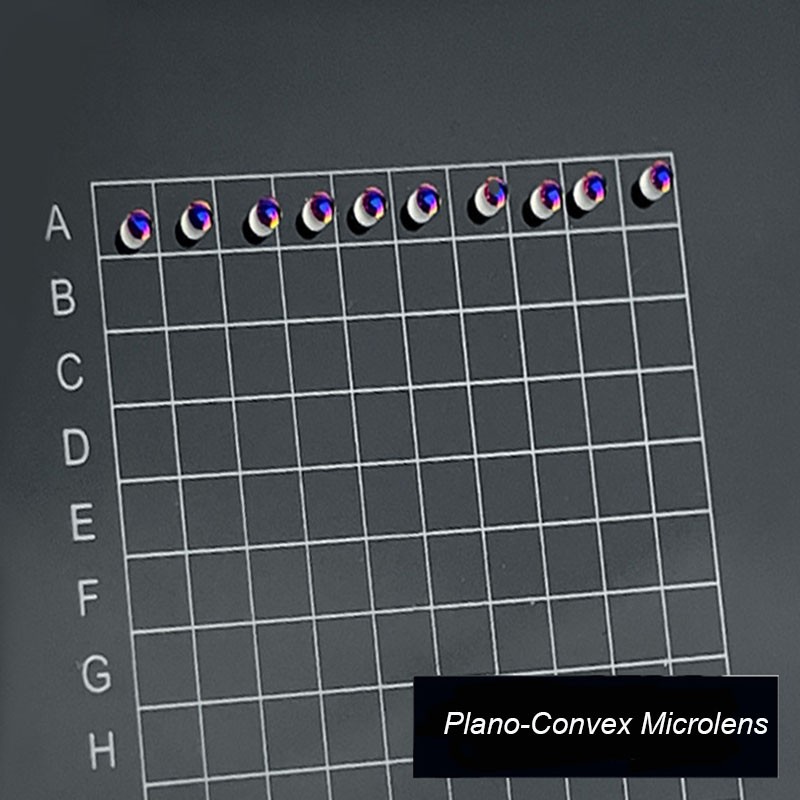

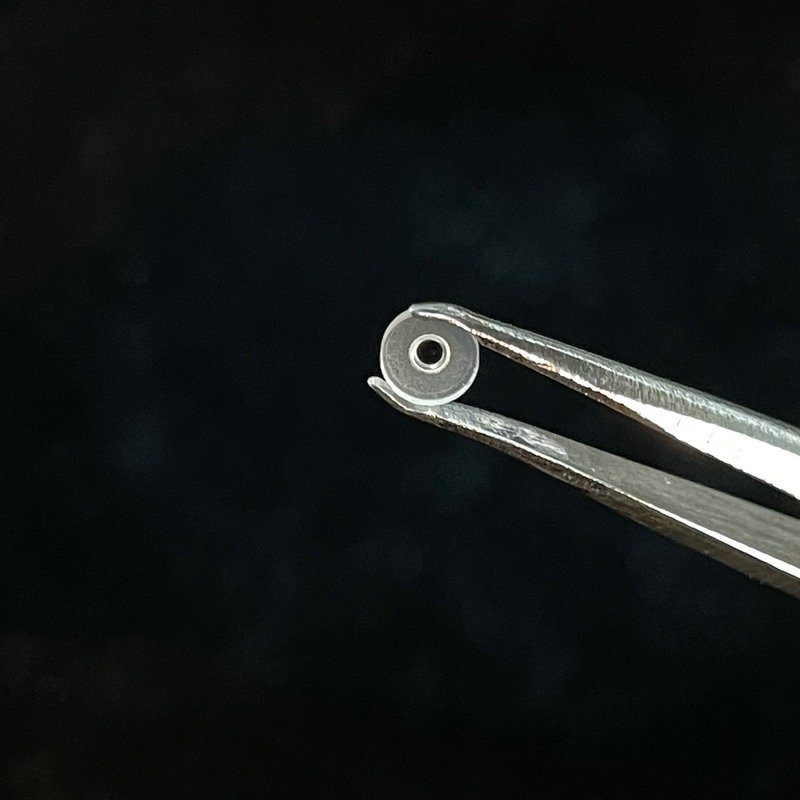

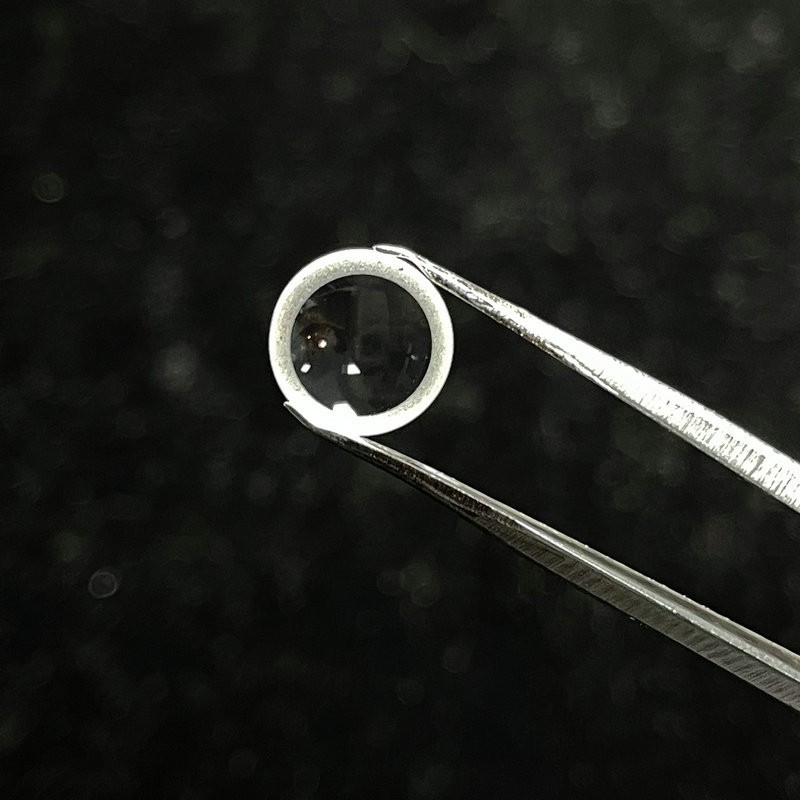

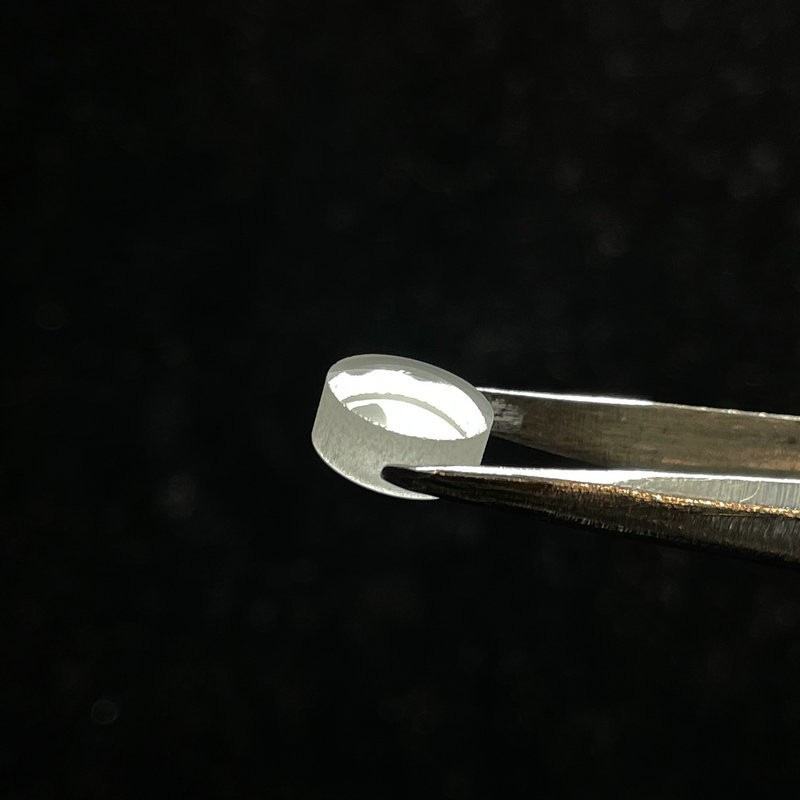

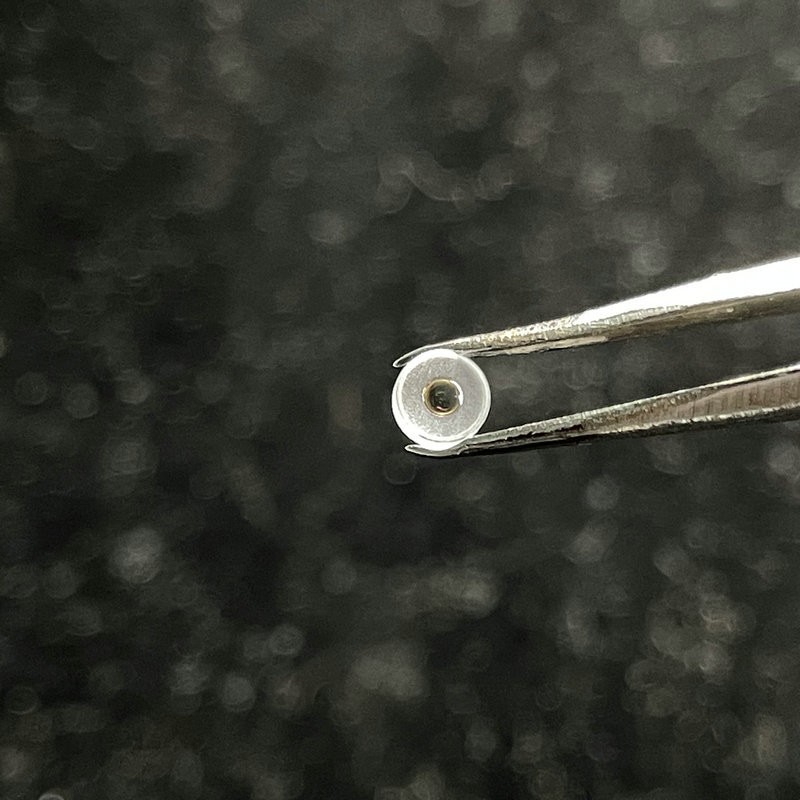

AOS Optics focuses on micro-optical component processing, boasting rich experience honed through practical production. Our offerings cover custom doublet and triplet micro lenses.
Miniature and highly integrated, micro lenses are purpose-built for micro-optical systems. They perform essential optical functions (focusing, imaging, beam transformation) while enabling complex operations like high-order aberration correction and spot shape modulation.
Driven by technological progress, micro lenses are increasingly adopted in medical devices, endoscopes, life sciences and industrial instruments, providing high-efficiency, precision optical solutions for modern optical systems.
