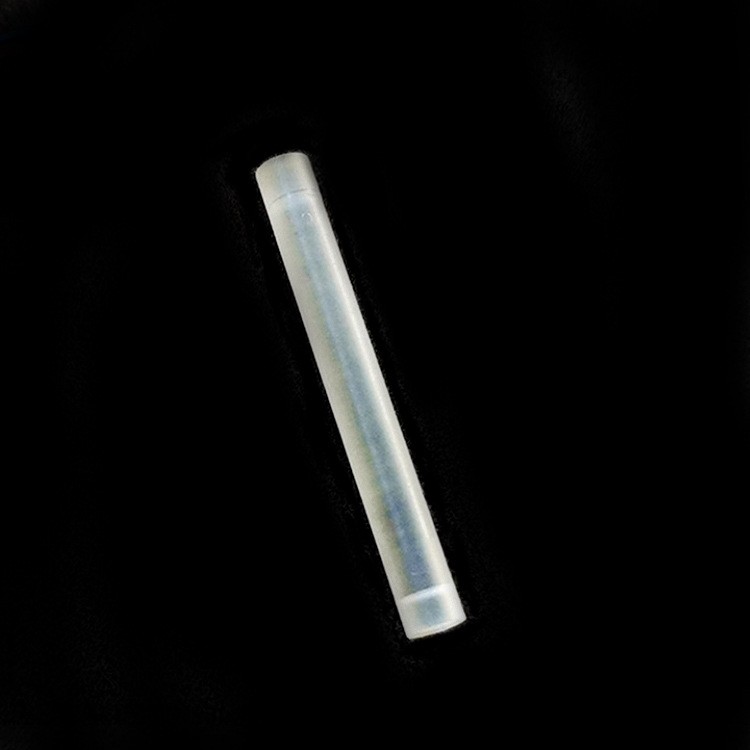

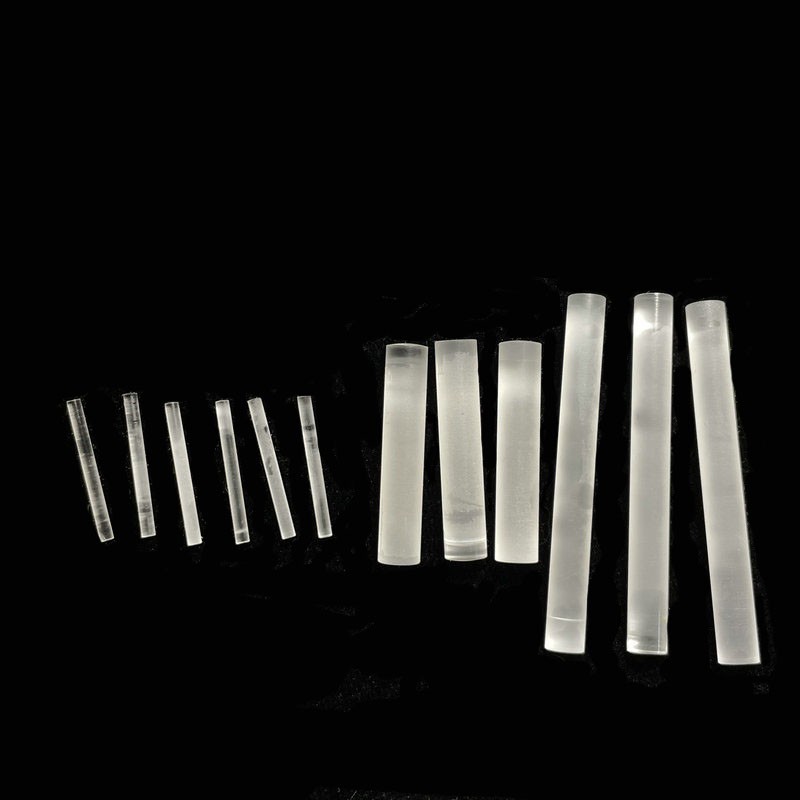

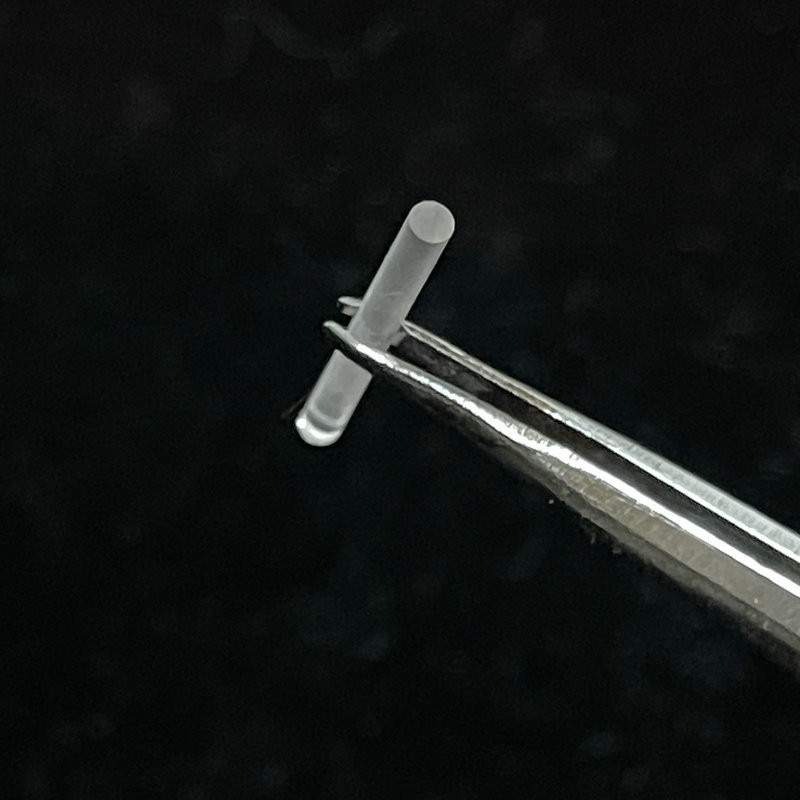

Micro Rod Lenses

Micro Rod Lens is an optical element mainly used in optical systems, especially in endoscopes and other precision optical instruments. The main functions of the rod lens include image rotation and achromatization. By adjusting the direction of the rod mirror, the imaging quality of the optical system can be ensured.


Material	Optical Glasses, N-BK7/H-K9L, Fused Silica, Infrared Material, etc.
Dimension	Standard Sizes or Customized
Tolerance	+/-0.01mm, or +/-0.1mm
Flatness	PV:Lambda/10 ,or RMS: Lambda/100
Parallelism	< 30 arc seconds
Surface Quality	10-5, 3X0.063
Clear Aperture	>90%
Bevel	Protective bevel
Coating	According to customer's request

We specialize in the precision processing of micro-optical components, with extensive hands-on expertise honed through years of practical manufacturing and production. AOS offers custom doublet and triplet micro lenses tailored to diverse optical system requirements.

Micro rod lenses serve as critical components for laser homogenization in laser applications, optimizing laser energy distribution for uniform performance. Beyond laser systems, they are widely integrated into digital displays and integral imaging solutions. They also play an indispensable role in medical and industrial fields, including medical endoscope assemblies, automotive projection systems, general medical devices, industrial endoscopes, laparoscopic/joint/ENT surgical equipment, photomedical and aesthetic devices, dental imaging systems, minimally invasive endoscope platforms, surgical microscopes, and optical instrument accessories.
