Infrared Dome

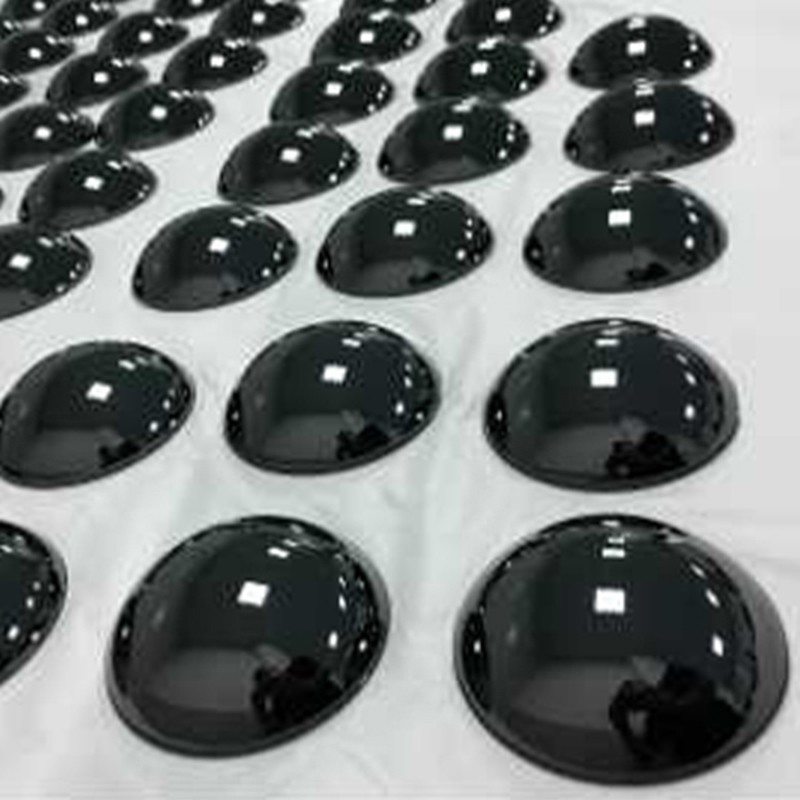

An optical dome is a uniform-thickness spherical component with coinciding centers of its inner and outer spherical surfaces. Mounted at the front end of high-speed projectiles, it features an aerodynamic profile that meets strict fluid mechanics requirements. With two concentric spherical surfaces, this component can be visualized as a crescent-shaped optical window.


Material	Sapphire, ZnS, ZnSe, Silicon and Germanium, etc.
Dimension Tolerance	+/-0.01mm, or +/-0.1mm
Thickness&Height	As customer's drawings
Flatness	PV: 1/10 Lambda
Centration	< 30 arc seconds
Surface Quality	10/5,20/10,40/20
Clear Aperture	>90%
Bevel	Protective bevel
Coating	According to customer's request

Optical dome lenses are commonly used in deep-sea submersibles, deep-sea equipment monitoring, and underwater robots in the field of scientific research. At the same time, optical dome cover are widely used in the meteorological industry.

In the military field, optical domes are often used for missile guidance, also known as fairings. Dome lens is widely used in infrared guidance and various airborne optoelectronic platform weapons and equipment and has become an important component of these equipment technologies

AOS Optics has many years of experience in optical dome lens processing and coating, and has the ability to produce optical domes with diameters from 8mm to 350mm. It can prepare and produce optical domes made of optical glass, ZnS, ZnSe, Si, Ge and other materials. At the same time, it can prepare various functional film layers on the surface of the head cover/optical dome cover, including conductive films, anti-reflection films, three-proof films, conductive rings, and welding guidance wires.
